flightofharmony » 1-6-13: PSU distribution board

What is the 1-6-13?
The 1-6-13 is a direct replacement for the Doepfer A-100 bus. It includes 13 shrouded 16-pin headers and is only 10.2″ long. Click preview images for a full-size rendering
Features:
Complementary over-current and reverse-voltage protection: the left and right halves of the 1-6-13 are independently protected with Polyfuses (±12V @ 1.1A, +5V @ 0.5A). The PSU connectors are unprotected, so downstream boards are unaffected Three sets of indicator LEDs to indicate status of: left side, right side, PSU input. Dual PSU Input connectors, mounted in the middle of the board for proper “star” distribution scheme. The seventh header configured to accept 5×5 plug-in adapter module.(illustrated below) Click on preview image for a full-size rendering

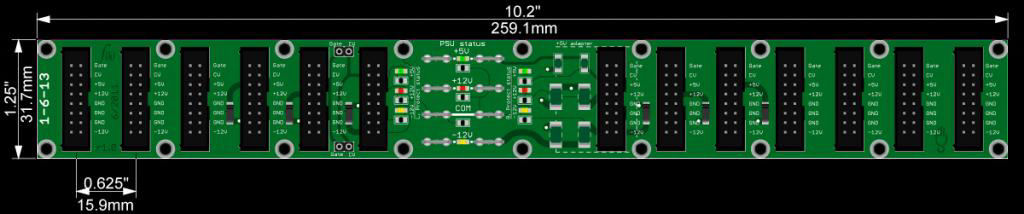

The 1-6-13 is a direct replacement for the Doepfer A-100 bus. It includes 13 shrouded 16-pin headers and is only 10.2″ long.

Click preview images for a full-size rendering

Complementary over-current and reverse-voltage protection: the left and right halves of the 1-6-13 are independently protected with Polyfuses (±12V @ 1.1A, +5V @ 0.5A). The PSU connectors are unprotected, so downstream boards are unaffected
Three sets of indicator LEDs to indicate status of: left side, right side, PSU input.
Dual PSU Input connectors, mounted in the middle of the board for proper “star” distribution scheme.

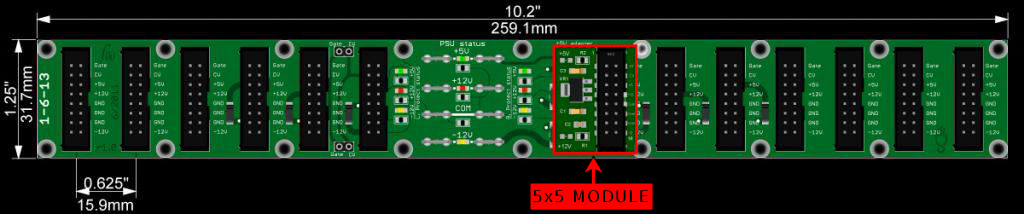

The seventh header configured to accept 5×5 plug-in adapter module.(illustrated below)

Click on preview image for a full-size rendering
