What is the 5×5?

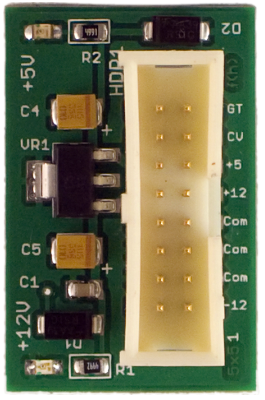

The 5×5 is a plug-in module that functions as a +5V converter, similar in concept to the Doepfer A100 AD5 but greatly improved.
- Supplies up to 500mA of +5VDC voltage from the +12V rail.
- Pass-through design so the header it is placed on can still be used for a module.
- Narrow enough to fit between any set of headers, anywhere on the standard Doepfer-spaced boards.
- The 5×5 was also designed in conjunction with the 1-6-13 for use on the seventh header – allowing the system to feature the +5VDC generated with the 5×5 as well as 13 unobstructed headers (image below).
|
![Mechanical drawing of the 1-6-13 with 5x5 adapter Mechanical drawing of the 1-6-13 with 5x5 adapter](http://m5m.830.myftpupload.com/images/1x6x13/1-6-13adapterv2.jpg)
Click preview image for a full-size rendering.
